Qingling Isuzu GIGA Refrigerated Truck
Classification：
Keyword：
Overview Introduction
A high-performance commercial vehicle designed for cold chain logistics, featuring core parameters and detailed configuration analysis. Complies with GB1589-2016 road vehicle dimension limits (total length ≤12m), suitable for urban distribution and medium/long-distance cold chain transport.
Product Details Introduction

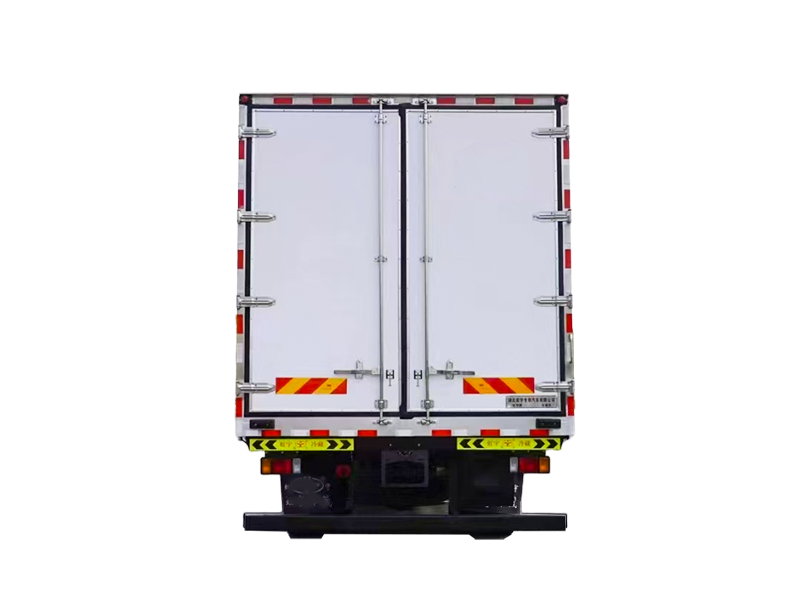

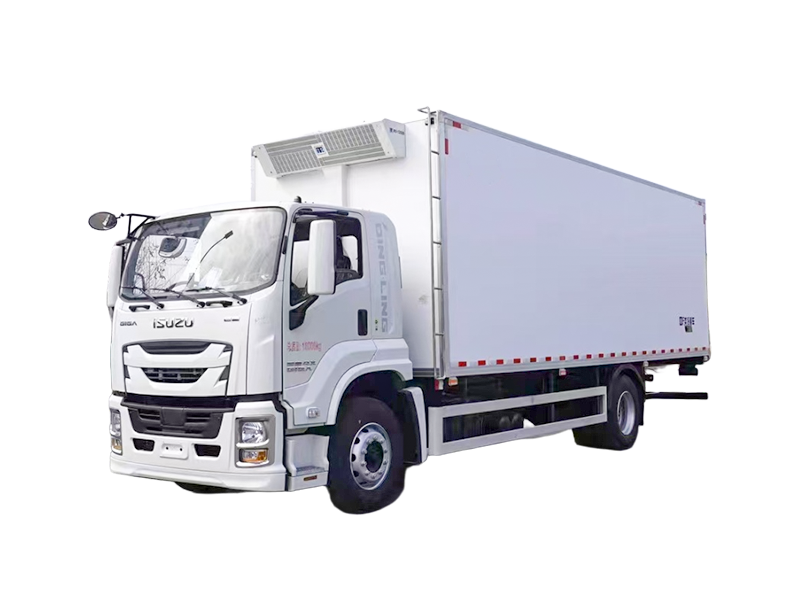

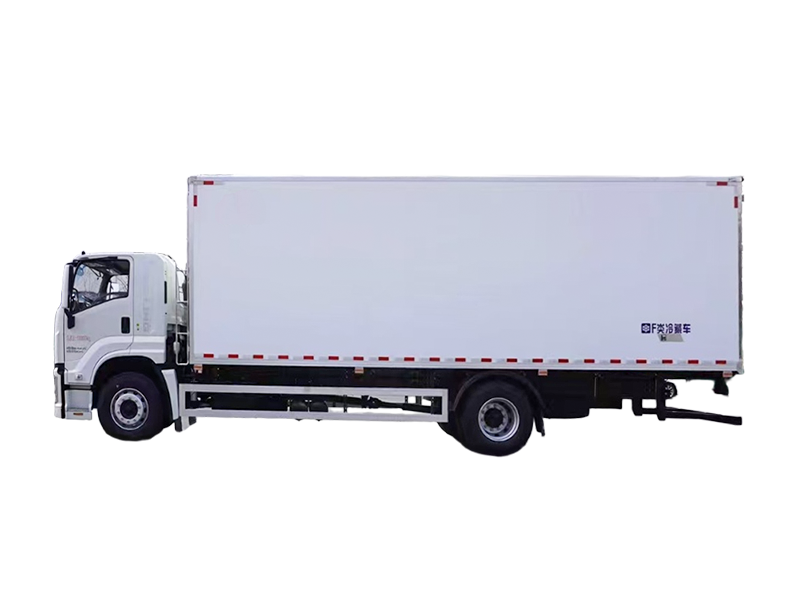

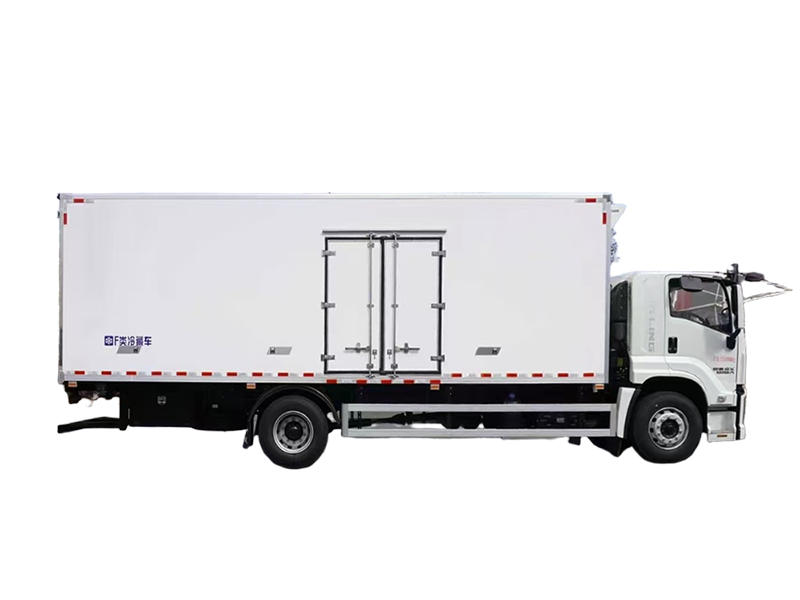

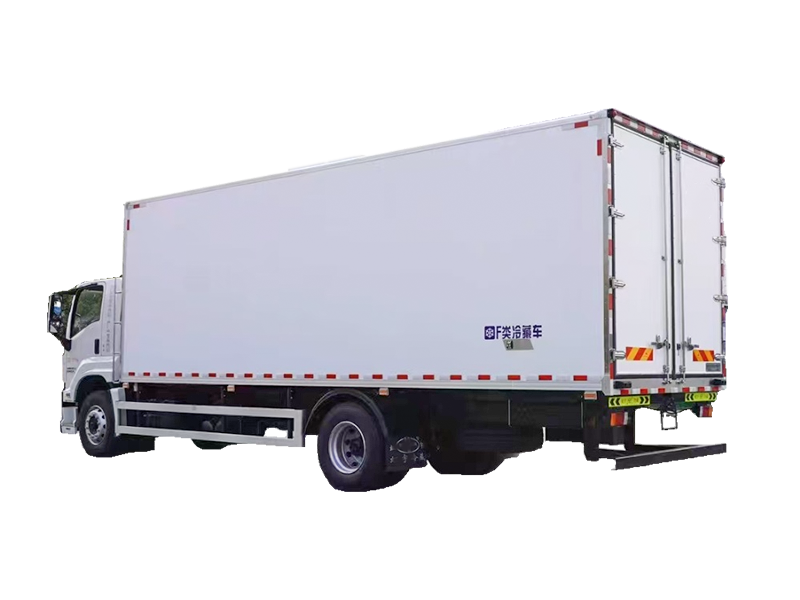

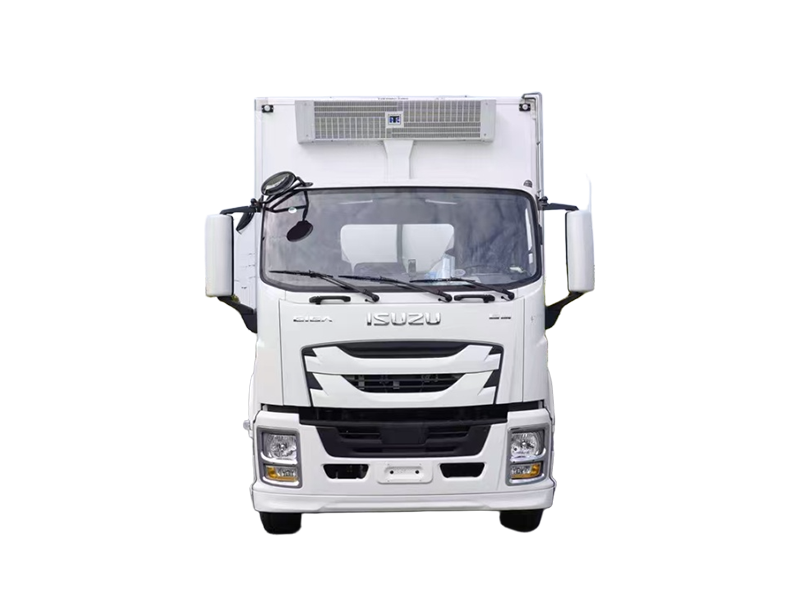

Qingling Isuzu GIGA Refrigerated Truck
A high-performance commercial vehicle designed for cold chain logistics, featuring core parameters and detailed configuration analysis.
1. Basic Parameters
Overall Dimensions
Length × Width × Height: 10,000 × 2,600 × 3,850 mm
Application: Complies with GB1589-2016 road vehicle dimension limits (total length ≤12m), suitable for urban distribution and medium/long-distance cold chain transport.

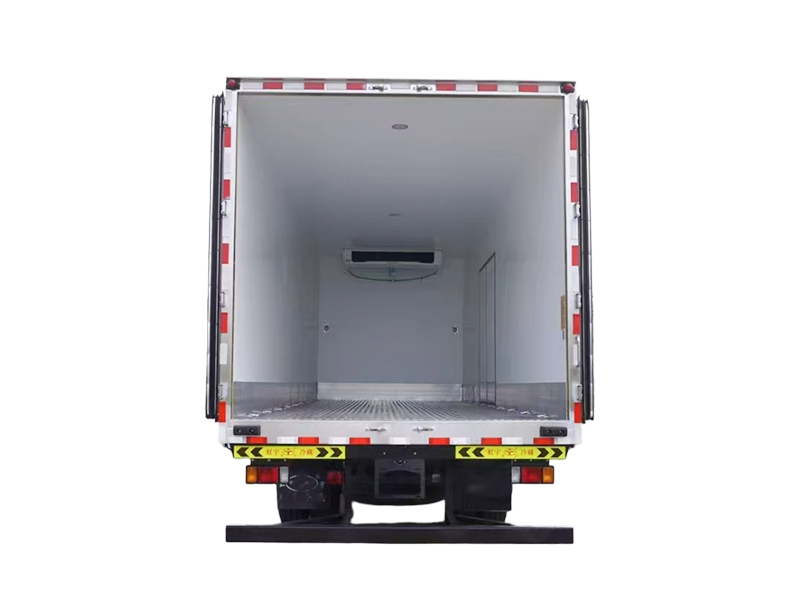

Cargo Box Dimensions
Interior (L × W × H): 7,600 × 2,440 × 2,400 mm
Volume: ~44.6 m³ (theoretical capacity), ideal for high-density goods (e.g., frozen products, pharmaceuticals).
Wheelbase: 5,550 mm
Optimized turning radius and stability for complex road conditions.
2. Powertrain
Engine
Model: Isuzu 4HK1-TCG62 (China VI emissions)
Displacement: 5,193 ml
Power/HP: 165 kW / 225 HP
Features: High torque at low RPM (~800 N·m @1,500 rpm), excellent fuel efficiency, designed for heavy-duty long-haul transport.
Transmission
FAST 8-speed manual transmission
Advantage: Multi-gear design adapts to varying loads, enhancing climbing and high-speed performance.
3. Chassis & Load Capacity
Axle Configuration
Front Axle: 6.3-ton capacity
Rear Axle: 13-ton single-reduction axle
Gross Weight: Estimated 18–25 tons (subject to official certification), strong load-bearing capability.
Braking System
ABS + Air-Operated Parking Brake, ensuring emergency braking safety, especially in rain/snow.
Tires: 275/80R22.5
Low-rolling-resistance tubeless tires, balancing durability and fuel economy.
4. Cab & Comfort
Cab: New Isuzu GIGA 4X wide cab
Standard: Multi-function steering wheel, power windows, central locking + remote key, A/C & heating.
Ergonomics: Four-point suspension reduces driver fatigue on long journeys.
Refrigeration Unit (Optional)
Recommended: Independent -18°C to +12°C units (e.g., Carrier, Thermo King) for multi-temperature zones.
5. Applications & Competitor Comparison
Advantages:
Isuzu engine offers higher reliability and lower failure rates vs. domestic counterparts.
Large-volume cargo box suits e-commerce cold chain and supermarket distribution.
Product Details Display
Craft Display

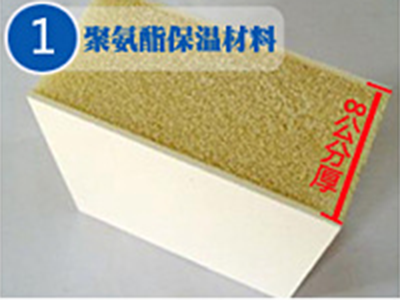

8mm polyurethane insulation material

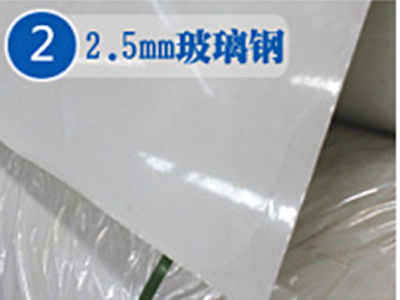

2.5mm FRP interior and exterior panels

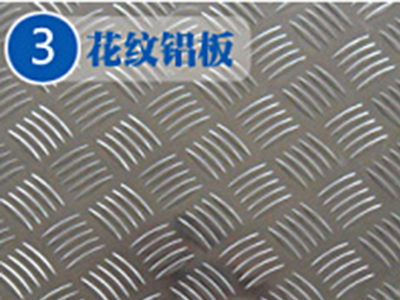

Floor with tread plate aluminum

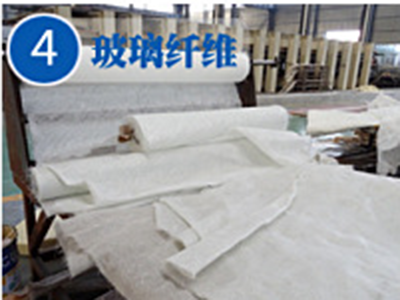

Fiberglass-reinforced compartment bonding performance

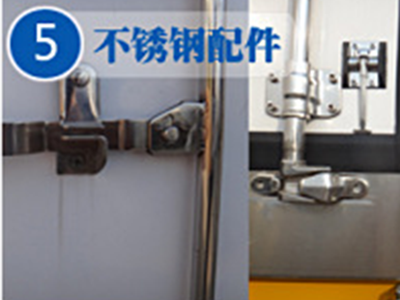

Stainless steel door lock and hasp

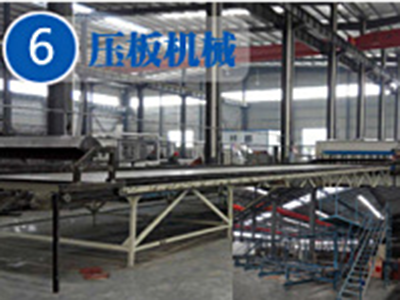

Automated pressing and splicing
Optional Configuration
Slaughterhouse Overhead Docking Rail

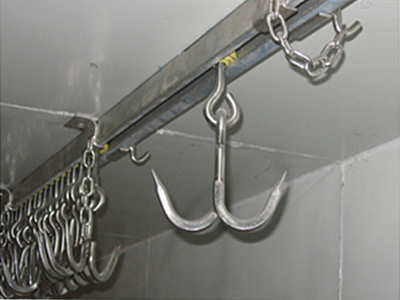

Standard Meat Hook Rail

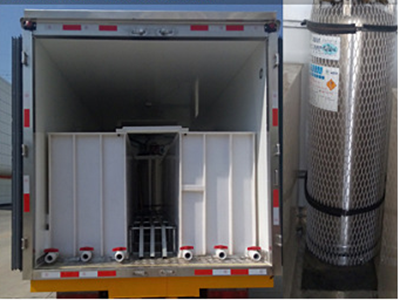

Live Fish Transport Container System

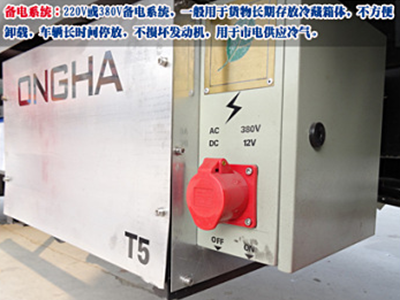

Backup Power Equipment

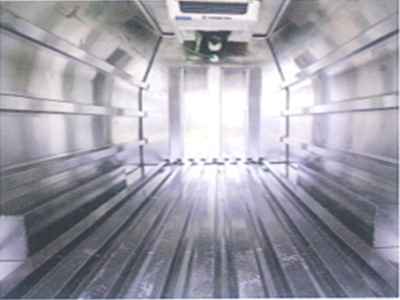

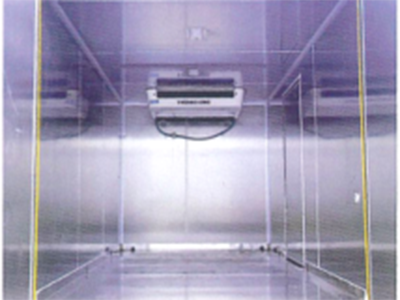

Fully Stainless Steel Interior

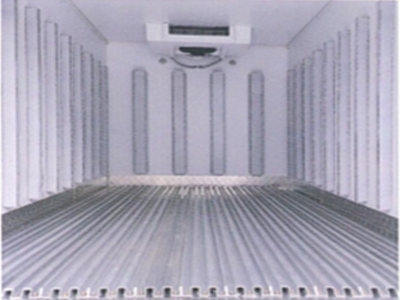

Five-Sided Ventilation Duct with Full Stainless Steel Interior in Casing
Five-sided ventilation duct/channel in cabinet

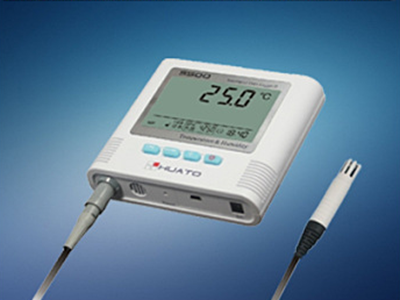

Temperature and Humidity Recorder
