Dongfeng Smooth D7V four after eight + Xugong G14T-5 truck crane
Classification：
Keyword：
Overview Introduction
Dongfeng Smooth D7V 2.5m Dongfeng Tianlong original ultra-wide cab, double front and rear axle 5T/10T, 11.00R20 steel wire tires, with original ABS, electric glass, airbag seats, original air conditioning, daily running lights, central lock, remote control key, lower protection, aluminum alloy fuel tank + air storage cylinder, vehicle kit.
Product Details Introduction

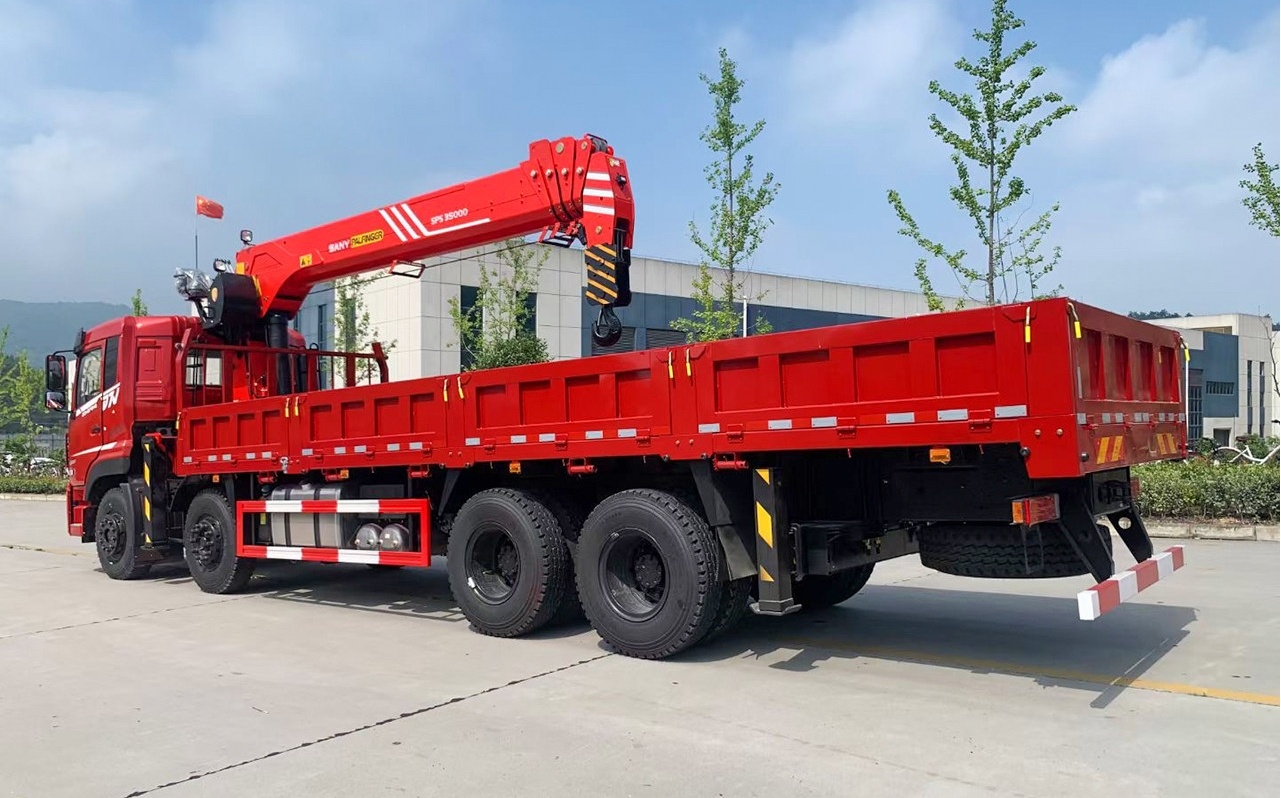

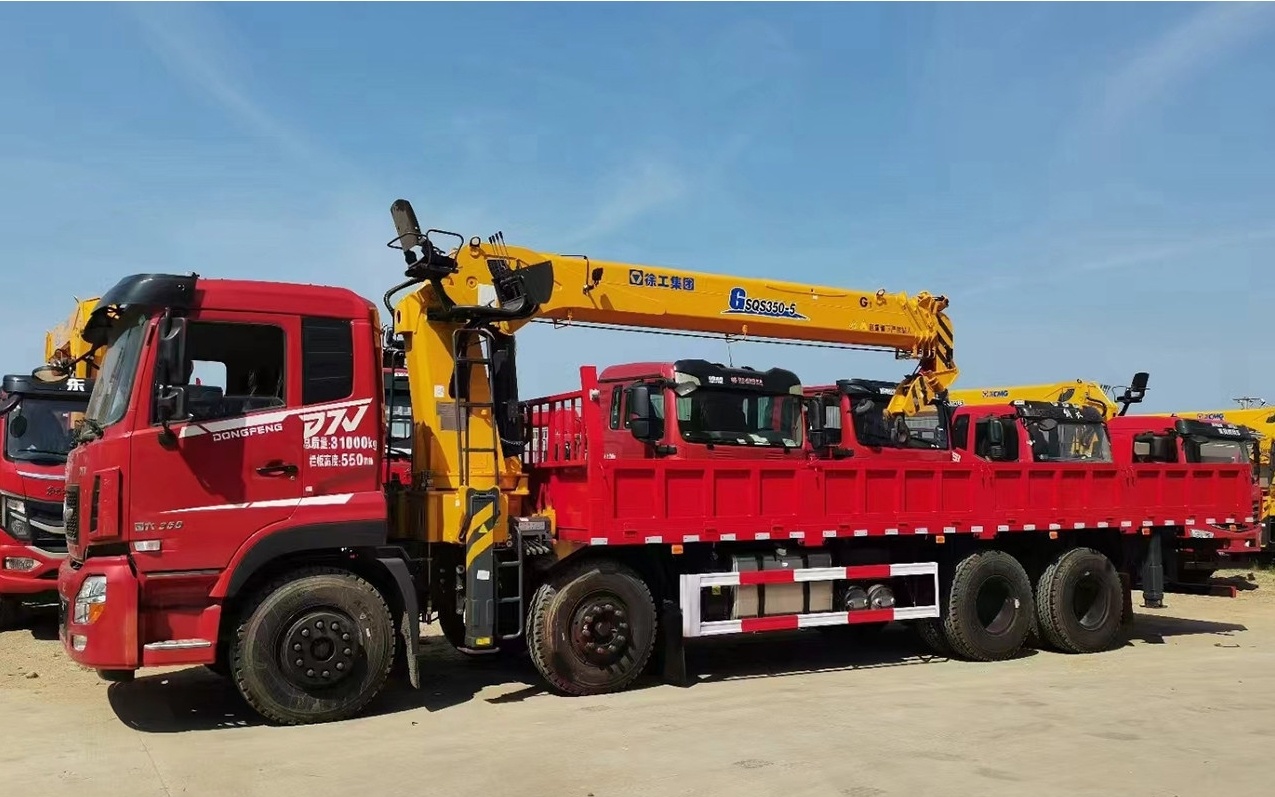

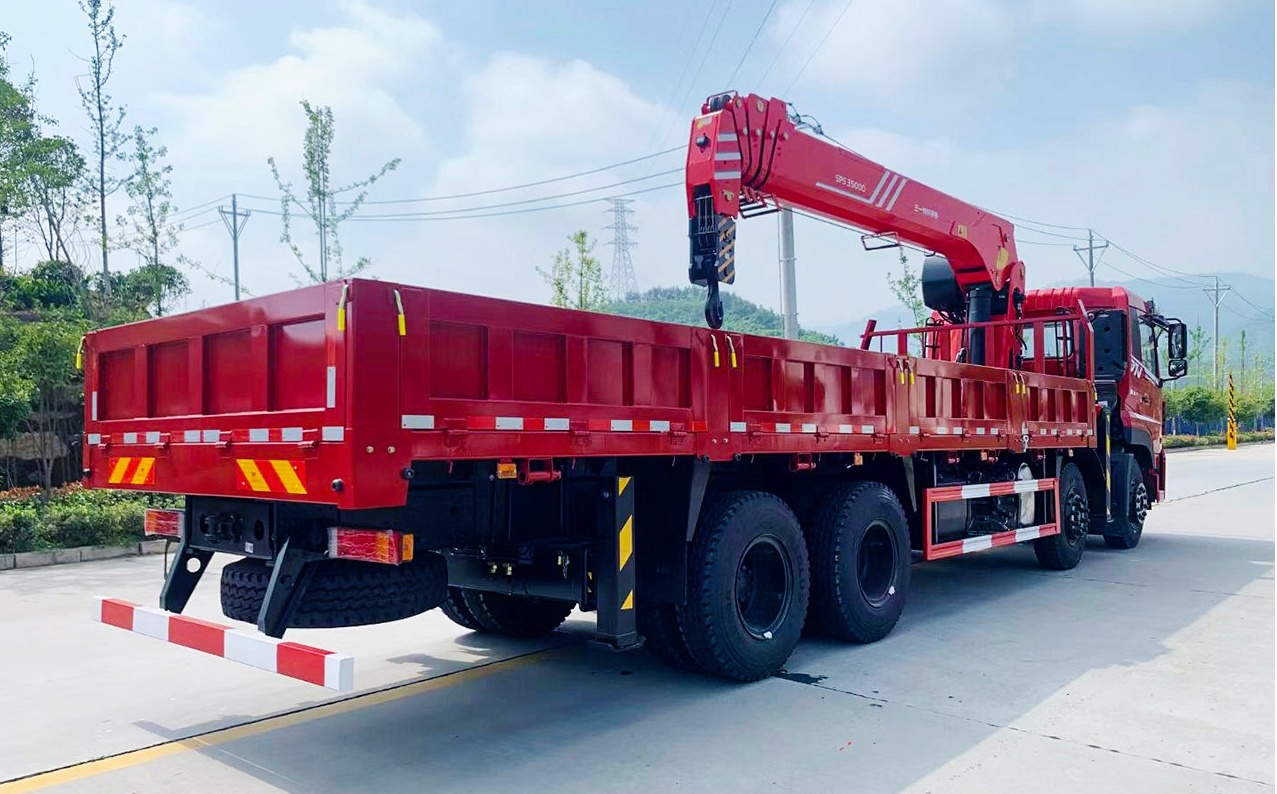

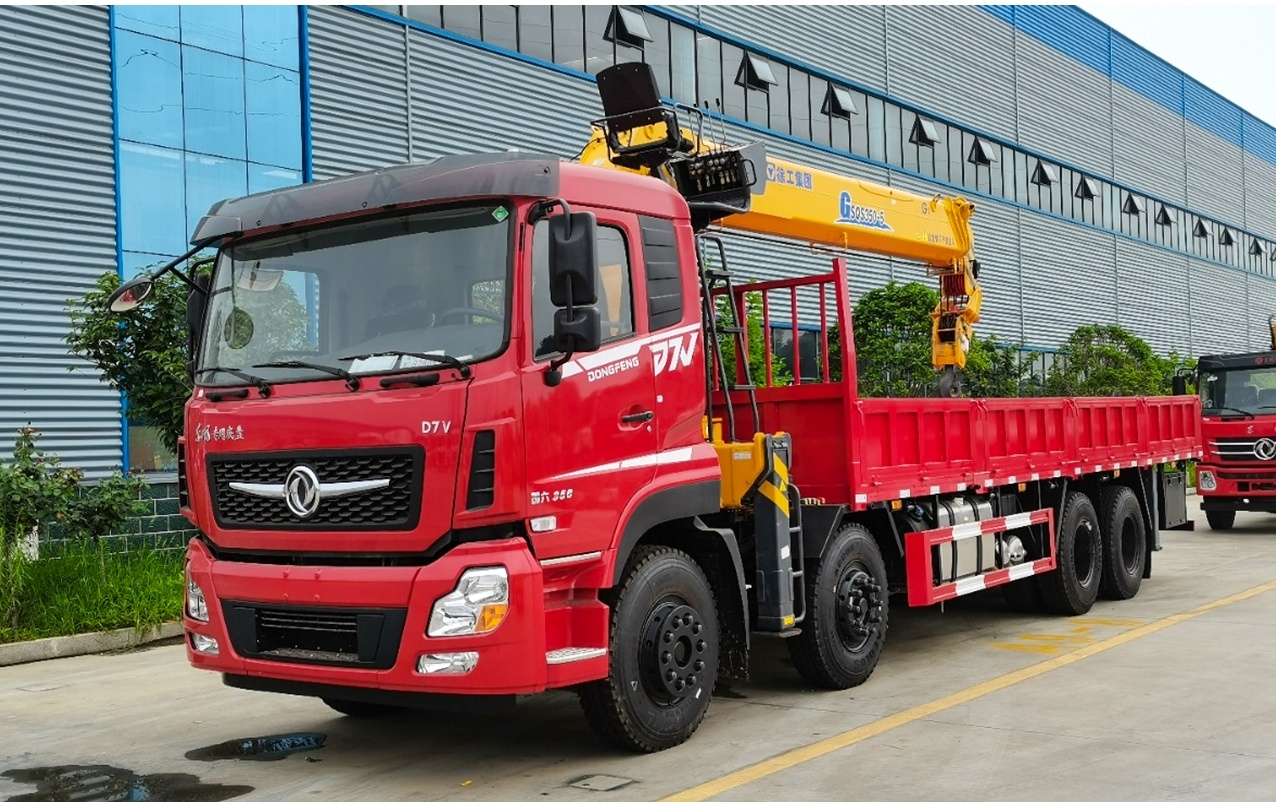

Dongfeng D7V four after eight + Xugong G14T-5 onboard crane configuration
Announcement model: truck with lifting truck
Container size: 8300,8500 x 2400,2450 x 550,600 (GB side three bottom five engineering cargo compartment)
Axis distance :2150+4250+1350mm
Engine: Yuchai 350 HP six-cylinder engine (power 118KW), 2.5L displacement
Transmission: Fast 12 speed transmission
Frame :300 three-layer through frame

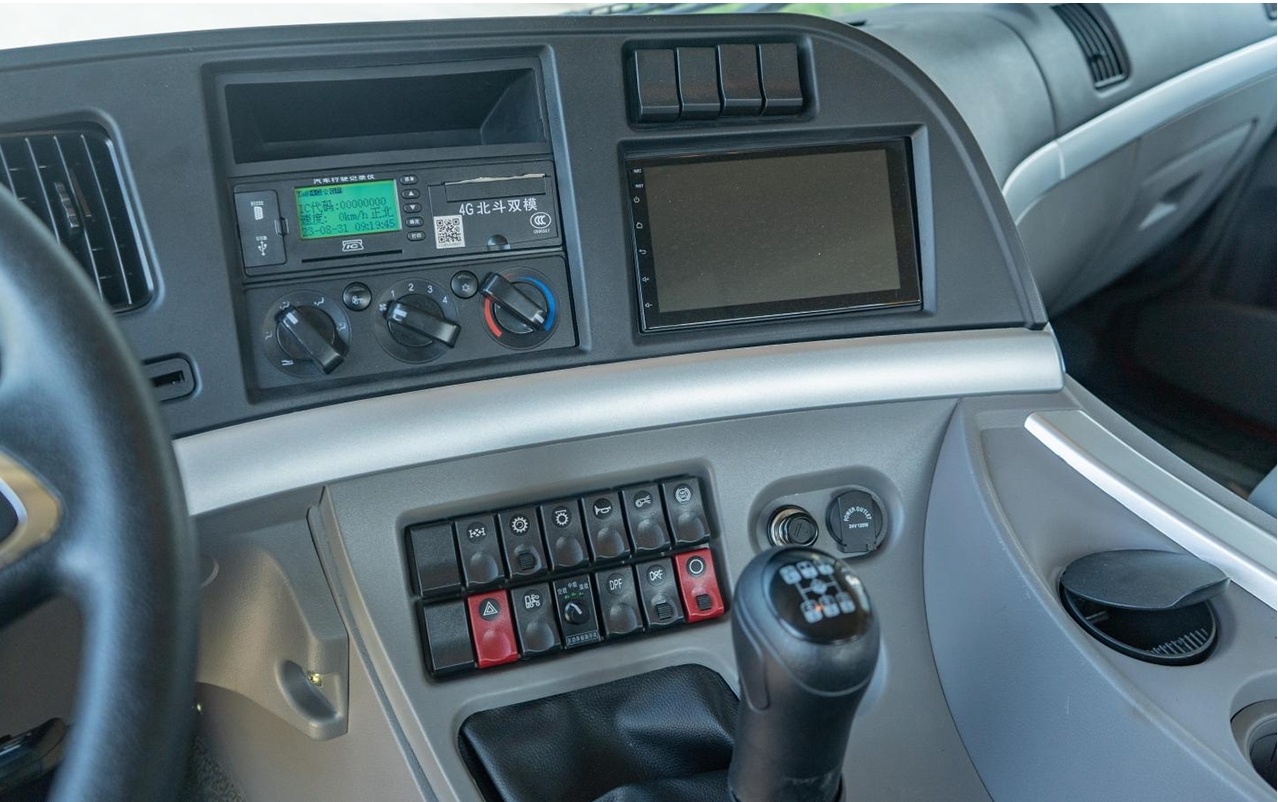

Chassis configuration: Dongfeng Smooth D7V 2.5m Dongfeng Tianlong original ultra-wide cab, double front and rear axle 5T/10T, 11.00R20 steel wire tires, with original ABS, electric glass, airbag seats, original air conditioning, daily running lights, central lock, remote control key, lower protection, aluminum alloy fuel tank + air storage cylinder, vehicle kit.
Function configuration: Xugong G series 14 tons 5 section straight arm crane
Truck crane special function video
Operating parameter
| Straight boom cranes | Folding arm cranes | ||||||
| Model number | Lifting height (m) | Working radius(meters) | Note | Model number | Lifting height (m) | Working radius (meters) | Note |
| 2 tons, 2 sections | 6.8 | 5.8 | Full rotation | 2 tons, 2 sections | 7.5 | 4.78 | Rack and pinion cylinder |
| 2 tons, 3 sections | 9 | 7.7 | Full rotation | 3.2 tons, 2 sections | 8.5 | 5.69 | Rack and pinion cylinder |
| 3.2 tons, 2 sections | 6.8 | 5.5 | Full rotation | 3.2 tons, 2 sections | 10 | 7.3 | Rack and pinion cylinder |
| 3.2 tons, 3 sections | 9.5 | 7.5 | Full rotation | 4 tons, 3 sections | 10.2 | 7.3 | Rack and pinion cylinder |
| 4 tons, 3 sections | 10 | 7.93 | Full rotation | 4 tons, 3 sections | 11 | 8 | Fully hydraulic, fully rotating |
| 4 tons, 4 sections | 11.5 | 9.4 | Full rotation | 5 tons, 4 sections | 12.8 | 9.92 | Fully hydraulic, fully rotating |
| 5 tons, 3 sections | 10.5 | 8.7 | Fully hydraulic, fully rotating | 6.3 tons,3 sections | 11 | 8 | Fully hydraulic, fully rotating |
| 5 tons, 4 sections | 12.5 | 11 | Fully hydraulic, fully rotating | 6.3 tons,4 sections | 13 | 9.92 | Fully hydraulic, fully rotating |
| 6.3 tons, 3 sections | 11 | 9 | Fully hydraulic, fully rotating | 8 tons, 4 sections | 13 | 9.75 | Fully hydraulic, full slewing, with aerial seat |
| 6.3 tons, 4 sections | 12.8 | 11 | Fully hydraulic, fully rotating | 10 tons, 4 sections | 13 | 9.75 | Fully hydraulic, full slewing, with aerial seat |
| 8 tons, 4 sections | 13.5 | 11.5 | Fully hydraulic, full slewing, with aerial seat | 12 tons, 4 sections | 13 | 9.78 | Fully hydraulic, full slewing, with aerial seat |
| 10 tons, 4 sections | 14 | 12 | Fully hydraulic, full slewing, with aerial seat | 14 tons, 5 sections | 14 | 11.4 | Fully hydraulic, full slewing, with aerial seat |
| 12 tons, 4 sections | 14.5 | 12.5 | Fully hydraulic, full slewing, with aerial seat | 16 tons, 5 sections | 15 | 12 | Fully hydraulic, full slewing, with aerial seat |
| 14 tons, 4 sections | 17.8 | 15.8 | Fully hydraulic, full slewing, with aerial seat | 20 tons, 7 sections | 20 | 16.8 | Fully hydraulic, full slewing, with aerial seat |
| 16 tons, 5 sections | 20 | 18.5 | Fully hydraulic, full slewing, with aerial seat | 25 tons, 9 sections | 20 | 16.4 | Fully hydraulic, full slewing, with aerial seat, wireless remote control |
| 20 tons, 6 sections | 26.35 | 24.35 | Fully hydraulic, full slewing, with aerial seat | 30 tons,7 sections | 16.2 | Fully hydraulic, full slewing, with aerial seat | |
Product Details Display
Craft Display
main rack
Illuminated work lights
hydraulic winches
Hydraulic multi-way valves
front outriggers
Crane arm telescopic mechanism
balancing valve
Slewing bearings
Slewing reducer
Overcoil Alarm
Luffing Cylinder
Auxiliary rear outriggers
Optional Configuration
drill rod
self-discharging function
wood grabber
wood grabber
Hydraulic Climbing Ladder
Double Basket
bricklayer
Single basket
